Before ordering a new chain tensioner, the axle diameter on your rear wheel is the first thing worth checking - not the brand of frame, not the color options, and not the price. A tensioner that doesn't match your axle won't seat correctly, and a loose or misaligned fit can undo the entire reason for running one in the first place. Riders often see "3/8-inch" and "10mm" used almost interchangeably, since the two are close enough in size that they get grouped in most catalogs, including this one. But axle diameter is only part of the picture.
Dropout width and frame design also play a role, and on certain platforms a 20mm dropout needs a specific adapter before a standard tensioner will ever fit. This guide breaks down exactly how axle size determines tensioner fit, walks through 10mm, 3/8", and 14mm applications, and finishes with two quick-reference charts so you can confirm your size in seconds. Billet BMX carries fitment options across all three sizes, and the goal here is to make sure you order the right one the first time.
Why Axle Diameter Determines Chain Tensioner Fit
A chain tensioner works by sitting directly against the rear axle inside the dropout, using an adjustment bolt to pull the wheel back and hold tension on the chain. Because the tensioner body has to physically contact the axle, its inner bore has to match the axle's diameter closely. Too loose, and the tensioner can shift or rattle under pedaling load. Too tight, and it simply won't slide into place at all.
This is where axle diameter and dropout size get confused. Axle diameter refers to the thickness of the axle itself, measured in millimeters or fractions of an inch. Dropout size refers to the width of the slot in the frame that the axle sits inside. A frame can have a 20mm dropout opening while still running a much thinner axle - which is exactly the case on some Race Inc builds, where an adapter kit steps the fitment down from 20mm to a standard 10mm or 3/8" axle.
Some platforms also require model-specific adapters rather than a universal tensioner. If your frame falls into that category, it's worth checking whether an adapter is already installed before assuming a standard tensioner will bolt straight on.
10mm / 3/8" Axle Chain Tensioners
The 10mm and 3/8" sizing is the most common chain tensioner fitment across BMX freestyle and race frames. Because the two measurements are close in real-world diameter, most manufacturers list them together, and a tensioner marked for one will typically work for the other. This is the size you'll find on the majority of standard freestyle setups and a large share of entry-level to mid-tier race frames.
Before ordering, confirm two things: the actual axle diameter on your hub (not just the dropout opening), and whether your frame uses a standard open dropout or an integrated system. If your frame has a 20mm dropout but runs a 10mm or 3/8" axle - as some Race Inc models do - you'll need a dropout adapter kit rather than a standard tensioner. Billet BMX stocks a dedicated Race Inc parts lineup built around this exact fitment gap, so it's worth checking there directly if you're running that platform.
14mm Axle Chain Tensioners
14mm axle tensioners are built for a specific group of platforms, most notably GT, Throne Cycles, and ZOOZ e-bikes. These frames use a thicker rear axle than standard 10mm/3/8" setups, which means the tensioner bore is sized differently and is not interchangeable with the more common size.
A 10mm or 3/8" tensioner should never be substituted on a 14mm axle. It won't seat properly against the thicker axle, and forcing a fit can damage the tensioner, the axle, or the dropout itself. Billet BMX's own 14mm tensioners are built specifically for this application, with a slide-adjustable shield that matches axle position using numbered markings on both sides - useful for keeping the rear wheel centered on frames like the Throne Goon 14mm rear axle setup, GT-based builds, and ZOOZ e-bike platforms, all of which specifically call for 14mm fitment rather than a standard axle size.

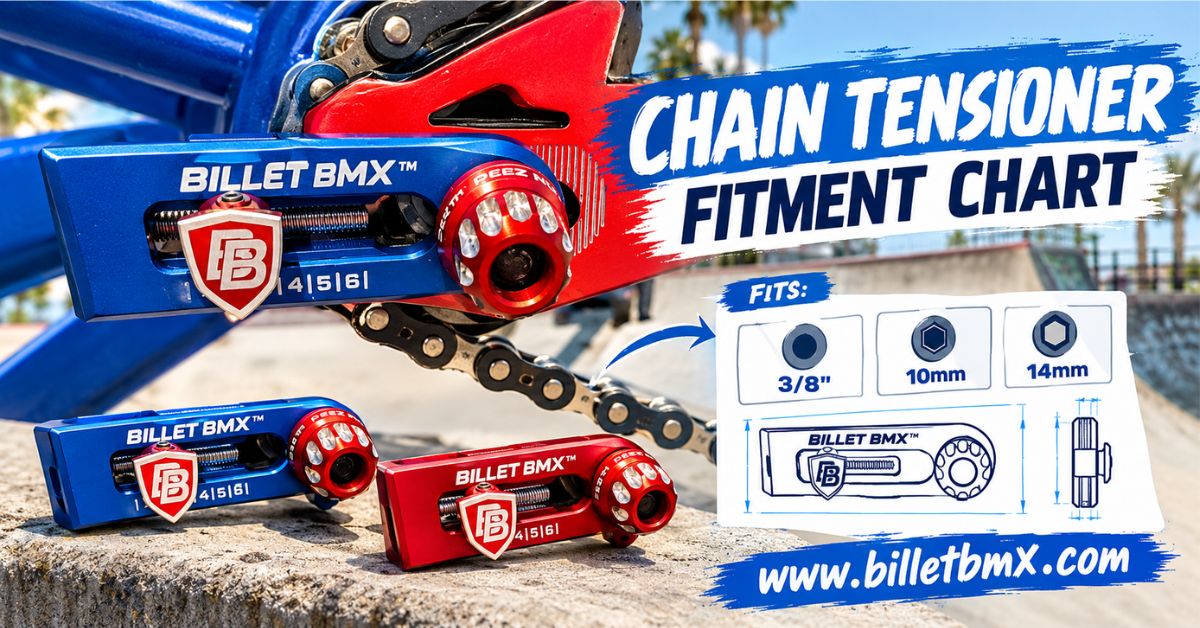

Quick Chain Tensioner Fitment Chart
| Axle Size | Common Equivalent | Tensioner Size to Check | Important Fitment Note |
|---|---|---|---|
| 3/8" | ~10mm | 3/8" / 10mm | Verify frame/dropout before ordering |
| 10mm | ~3/8" | 10mm / 3/8" | Common standard BMX setup |
| 14mm | - | 14mm | Requires 14mm-specific tensioner, not interchangeable |
| 20mm dropout | Not an axle size | Depends on actual axle | May require a Race Inc adapter kit |
Quick Lookup by BMX Frame & Brand
| Frame / Bike | Axle Size | Tensioner / Adapter | Fitment Note |
|---|---|---|---|
| GT | 14mm | 14mm tensioner | Verify exact model before ordering |
| Race Inc | 20mm dropout / 10mm axle setup | 20mm-to-10mm adapter kit | Model-specific, check dropout width |
| ZOOZ | 14mm | 14mm tensioner | Platform-specific, will not fit 3/8" |
| Throne | 14mm | 14mm tensioner | Verify exact model before ordering |
| Other BMX frames | Varies | Match axle diameter | Check manufacturer specs first |
For a closer look at Race Inc.'s specific 20mm-to-10mm adapter fitment, Billet BMX has a dedicated breakdown of that setup rather than repeating the full installation walkthrough here - check the Race Inc collection for the exact kit your model needs. Riders on ZOOZ platforms or GT frames should stick with the 14mm-specific tensioner rather than assuming any pair will fit.
How to Check Your BMX Axle Size Before Ordering
A few minutes of checking upfront saves a return trip through customer service later. Start with your frame or bike's manufacturer specifications, since most brands list rear axle diameter directly in the product details. If that information isn't available, measure the rear axle itself with a caliper rather than eyeballing it against a ruler - the difference between 10mm and 14mm can be easy to misjudge by sight.
Next, look at your dropout dimensions separately from the axle. As covered above, a wider dropout doesn't necessarily mean a wider axle. Check whether an adapter is already installed on your frame, since some bikes ship with one pre-fitted and others require it as a separate purchase. Once you have the actual axle diameter confirmed, match it directly against the tensioner specification listed on the product page rather than assuming based on frame brand alone.
What Happens If You Use the Wrong Tensioner Size?
Running the wrong tensioner size causes more than just an awkward fit. A tensioner that's too loose on the axle won't hold its position, which leads to a poor axle fit and gradual wheel movement as you pedal. That movement throws off wheel alignment, which in turn creates inconsistent chain tension - the exact problem the tensioner was meant to solve in the first place. Over time, forcing an incorrect fit can also damage the dropout or strip the axle hardware, turning a simple upgrade into a more expensive repair. Getting the axle size right before ordering avoids all of it.
10mm vs 14mm vs 3/8" Tensioners: At-a-Glance
For anyone who just wants the short version: 10mm and 3/8" axles are close enough in diameter to share the same tensioner category, and this covers most standard freestyle and race frames. 14mm axles are a separate category entirely, used on GT, Throne, and ZOOZ platforms, and require a 14mm-specific tensioner with no substitution. A 20mm dropout is not an axle size on its own - it usually means an adapter kit is needed to step down to a 10mm or 3/8" axle, as seen on certain Race Inc builds. When in doubt, measure the axle directly rather than guessing from the frame brand.
Once you've confirmed your axle size, browse Billet BMX's full chain tensioner collection to find the correct fit, or check the broader drivetrain parts lineup if you're upgrading more than one component at once. Riders tuning their setup further can also find matching tools in the drivetrain tools section.
Getting the right chain tensioner comes down to one measurement: your actual axle diameter, checked before you check anything else. Whether your build runs a standard 10mm/3/8" setup or a 14mm axle on a GT, Throne, or ZOOZ frame, matching the tensioner to the axle - not just the frame brand - is what keeps your rear wheel aligned and your chain properly tensioned.
Billet BMX stocks fitment options across all three sizes, along with the adapters needed for 20mm dropout conversions, so you can order with confidence once you know your number.
Frequently Asked Questions
1. Can I use a 10mm tensioner on a 14mm axle?
No. A 10mm tensioner won't seat on a 14mm axle. The bore is too small, causing a loose, unstable fitment that can shift or damage hardware under riding pressure.
2. Is a 3/8" axle the same as a 10mm axle?
They're close enough that most tensioners list both together. A 3/8" and 10mm tensioner are generally interchangeable on standard BMX freestyle and race frames.
3. How do I know what size BMX chain tensioner I need?
Check your frame's manufacturer specs first, or measure the rear axle diameter with a caliper. Match that number exactly to the tensioner's listed size before ordering.
4. Does dropout size determine tensioner size?
Not on its own. Dropout width and axle diameter differ. A wide 20mm dropout can still run a thinner 10mm axle, often requiring a separate adapter kit.
5. Do Race Inc frames need a special tensioner or adapter?
Some Race Inc models with 20mm dropouts need a 20mm-to-10mm adapter kit for a standard axle. Always confirm your exact model's dropout and axle size first.
