Stop Rear Wheel Slip With the Right Chain Tensioner Setup

Rear wheel slip is one of those problems that seems minor until it isn't. A chain that loosens mid-ride can skip under hard pedaling, throw off a landing, or in the worst case, come off the sprocket entirely at speed. The root cause is almost always the same: a single speed chain tensioner that isn't matched correctly to the dropout size or hasn't been set up with the right torque and adjustment sequence.

Billet BMX has built chain tensioner hardware for years, and one pattern shows up constantly -most rear wheel slip issues trace back to either the wrong axle-to-dropout match or a tensioner that wasn't adjusted through the full sequence during install. This guide walks through exactly how to set up BMX chain tensioners correctly for both 3/8" dropouts and 14mm dropouts, step by step.

Why Rear Wheels Slip in the First Place

A single-speed or fixed gear drivetrain has no derailleur to take up chain slack automatically. That job falls entirely on the tensioner and the position of the rear axle within the dropout. When a bike is built without a properly matched tensioner, riders often try to compensate by cranking down hard on the axle nuts alone -which works for a few rides, then fails the moment real pedaling force or landing impact hits the drivetrain.

Chain stretch makes this worse over time. Every chain stretches slightly with use, which means a setup that was tension-perfect on day one gradually loosens over weeks of riding unless the tensioner gets periodically readjusted.

Matching Tensioner Size to Dropout Type

This is the step most riders get wrong, and it's the single biggest cause of chain tensioners that don't hold. Chain tensioners bmx iders install need to match the exact axle diameter the frame's dropout is built for.

Dropout Size	Common Frame Types	Tensioner Match Needed
3/8" (10mm)	Most standard BMX and fixed gear frames	3/8" specific tensioner
14mm	Race Inc, GT, Throne, some e-BMX platforms	14mm specific tensioner
20mm-to-10mm	Race frames needing axle adapter	Adapter-style tensioner kit

Installing a 3/8" tensioner on a 14mm dropout, or the reverse, either won't fit at all or will sit loosely enough that it fails to hold tension under load. Always measure the axle before ordering rather than assuming based on frame brand alone, since some manufacturers change axle specs between model years.

Step-by-Step Setup for a Bicycle Chain Tensioner

Step 1: Loosen the Axle Nuts First

Before touching the tensioner itself, loosen the rear axle nuts just enough that the wheel can shift slightly within the dropout. Trying to adjust a tensioner against fully tightened axle nuts is the most common reason installs go wrong -there's no room for the wheel to move into position.

Step 2: Position the Wheel Center

With the axle nuts loose, center the rear wheel between the chainstays. Use the frame's built-in alignment marks if present, or measure from the seat tube to each side of the rim to confirm the wheel sits dead center.

Step 3: Set Chain Tension

Adjust each side of the bicycle chain tensioner evenly, using the numbered markings most tensioner shields include to keep both sides matched. The chain should have a small amount of vertical play -usually around half an inch of movement at the midpoint between the chainring and sprocket. Too tight strains the drivetrain and bearings; too loose brings back the original slip problem.

Step 4: Tighten Axle Nuts in Sequence

Once tension is set, tighten the axle nuts gradually, alternating sides rather than fully tightening one before touching the other. This prevents the wheel from pulling out of center as the nuts seat down.

Step 5: Recheck Chain Tension and Wheel Alignment

After the axle nuts are fully torqued, spin the wheel and check that it still runs true, then recheck chain tension one more time. If either shifted during final tightening, back off slightly and repeat steps 3 and 4.

Step 6: Ride, Then Re-Check After the First Few Sessions

New chains stretch fastest during their first few rides. Plan on a follow-up tension check after two or three sessions to catch any early stretch before it turns into slip.

Signs a Chain Tensioner Setup Needs Attention

A few warning signs point to a tensioner that needs re-adjustment or replacement: audible chain slap against the chainstay, visible side-to-side wheel movement when pedaling hard, a chain that looks noticeably looser on one side of the tensioner than the other, or a sprocket showing uneven tooth wear from the chain walking under load. Catching these early prevents a full chain skip mid-ride.

Tools Needed Before Starting the Install

Having the right tools on hand before starting saves a lot of back-and-forth mid-install. A basic setup includes a 15mm wrench or socket for most axle nuts (some frames use 9/16"), a smaller wrench sized to the tensioner's adjustment bolt, a tape measure or ruler for checking wheel centering, and a torque wrench if precise axle nut torque specs matter for the frame in question. Chain lube is also worth having ready, since a fresh application after final tensioning helps the chain settle into its new position more smoothly.

Common Mistakes That Undo a Good Tensioner Setup

Even with the right tensioner size, a few habits can undo an otherwise correct install. Tightening one axle nut fully before touching the other is one of the most frequent errors -it pulls the wheel out of center before the second side ever gets adjusted, forcing a full redo. Skipping the wheel-centering step entirely is another common shortcut that backfires, since an off-center wheel puts uneven load on one side of the tensioner and accelerates wear on that side's adjustment threads.

Overtightening the tensioner bolt itself is a subtler mistake. Cranking it down as hard as possible doesn't add extra holding power once the shield is properly seated -it just makes future adjustments harder and can strip the threads over time. A snug, even tightening on both sides holds just as well as an overtightened one, without the long-term wear.

Finally, some riders skip the re-check after the first few rides entirely, assuming a fresh install will hold indefinitely. Chain stretch happens fastest during break-in, so this early re-check is one of the most important steps in the whole process, not an optional extra.

Maintaining Tension Over the Life of the Chain

Once a chain tensioner setup is dialed in, maintenance becomes a matter of periodic checks rather than full readjustment. A quick monthly check -spinning the wheel to confirm it runs true and checking for that half-inch of vertical play at the chain's midpoint -catches gradual stretch before it becomes a slip problem. Riders who put in heavy mileage or ride aggressively should check more often, since harder impacts and repeated hard pedaling accelerate both chain stretch and axle nut loosening. Keeping a small wrench in a saddle bag or toolkit makes these quick roadside adjustments painless when something feels slightly off mid-session.

Choosing Quality Hardware for Long-Term Reliability

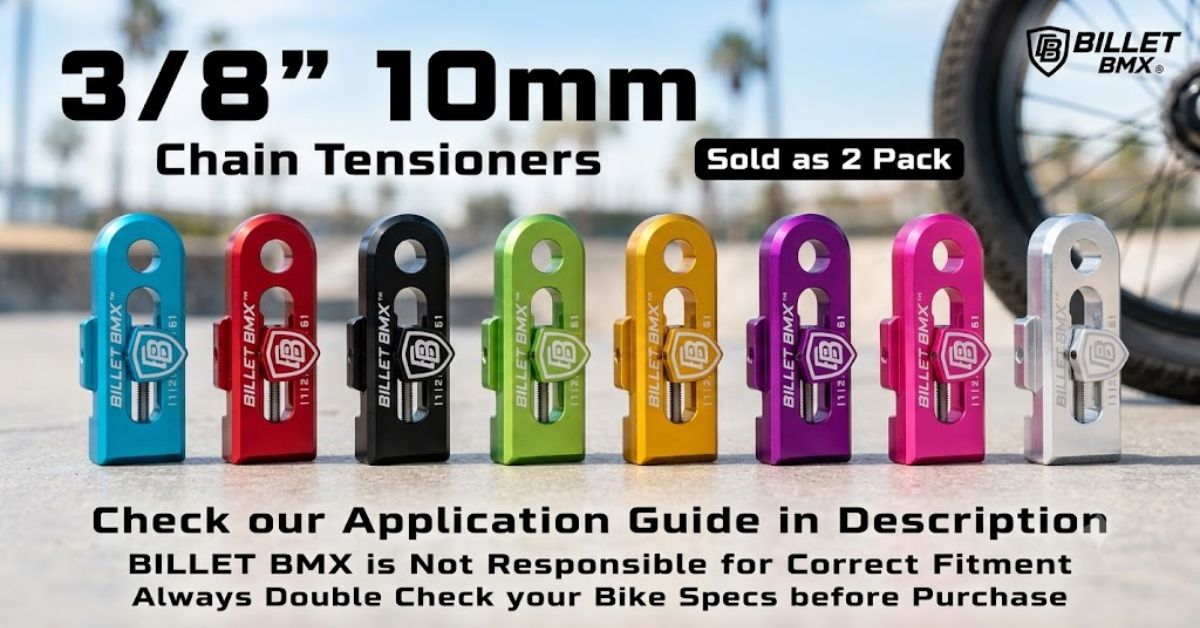

Not all tensioners are built the same. Billet BMX tensioners use an internal bolt design that sits flush rather than protruding -a detail that matters both for peg clearance and for avoiding accidental snags during a session. The sliding shield is CNC-machined from 6061 T6 aluminum, then anodized for corrosion resistance, with stainless steel hardware that holds up to repeated adjustment without stripping threads. That combination matters most for riders who adjust tension frequently, since cheaper stamped-steel tensioners tend to wear out their adjustment threads after repeated use.

Wrapping Up

Stopping rear wheel slip comes down to two things: matching the tensioner to the correct dropout size, and running through the full adjustment sequence instead of just cranking the axle nuts and hoping for the best. Whether it's a 3/8" fixed gear build or a 14mm setup on a race frame, taking the extra few minutes to center the wheel, set even tension on both sides, and recheck after the first few rides saves a lot of frustration down the line.

Billet BMX builds its chain tensioners specifically around that process, so the hardware holds its adjustment instead of working itself loose the first time the chain gets put under real load.
