BOX COMPONENT V-BRAKE BOX ONE

Description

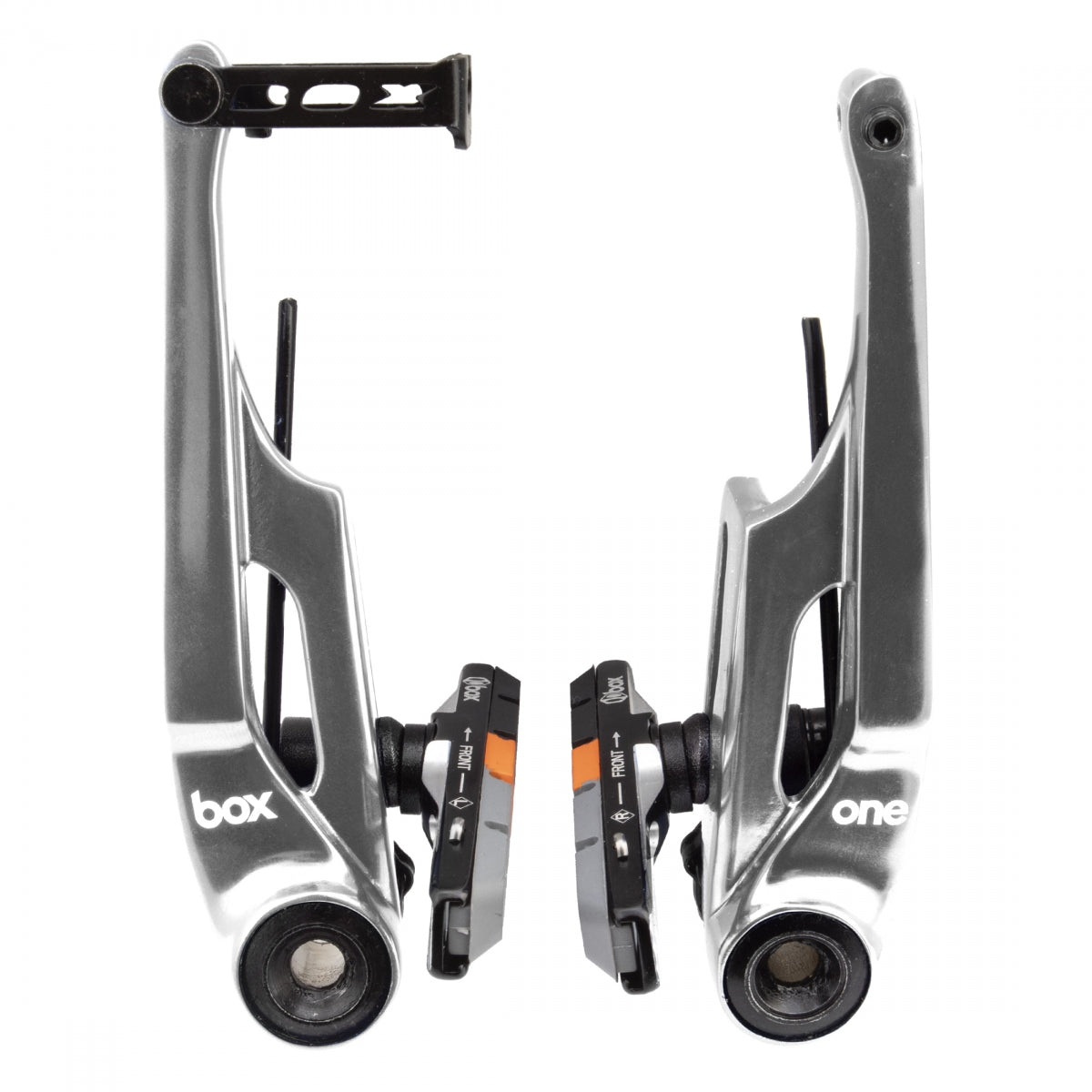

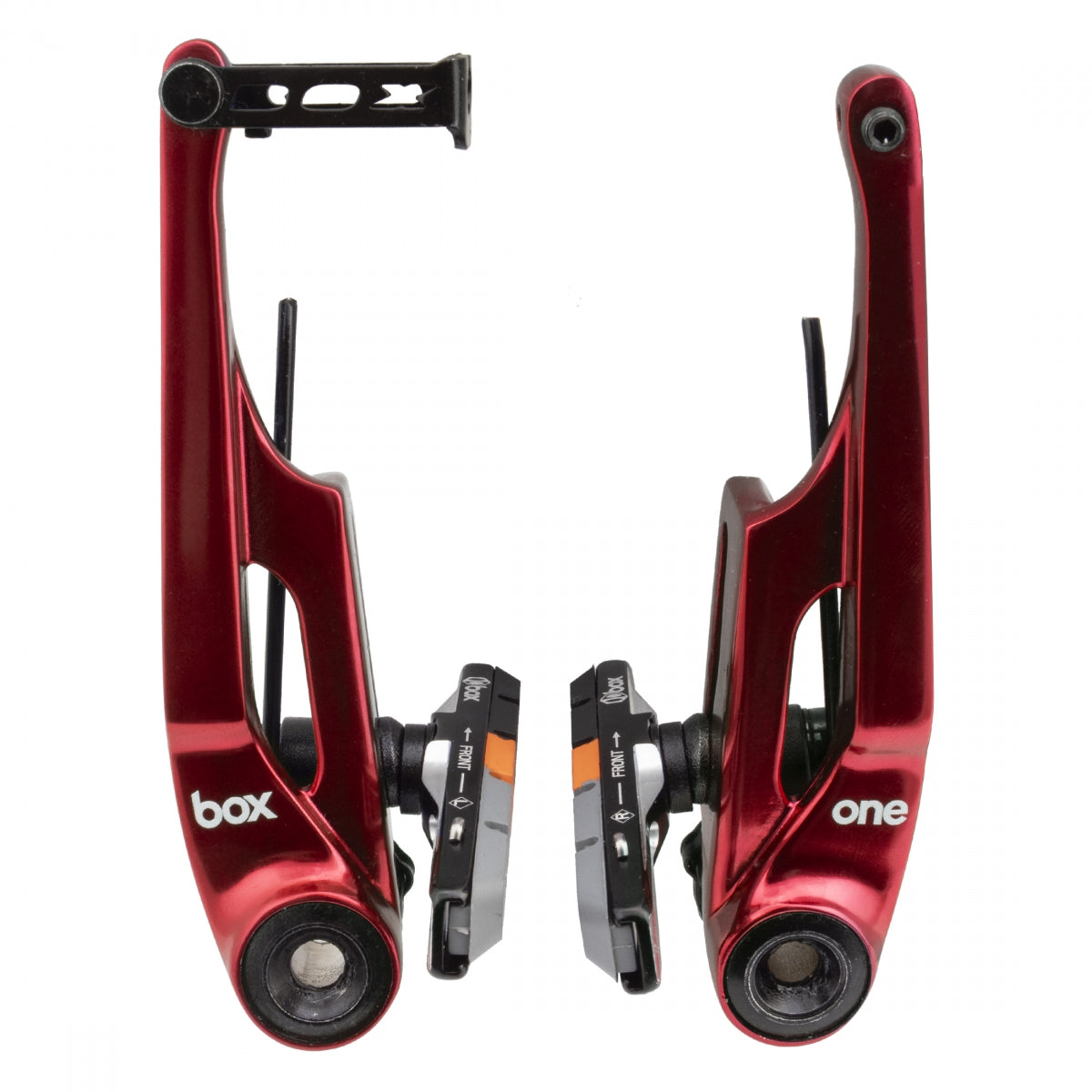

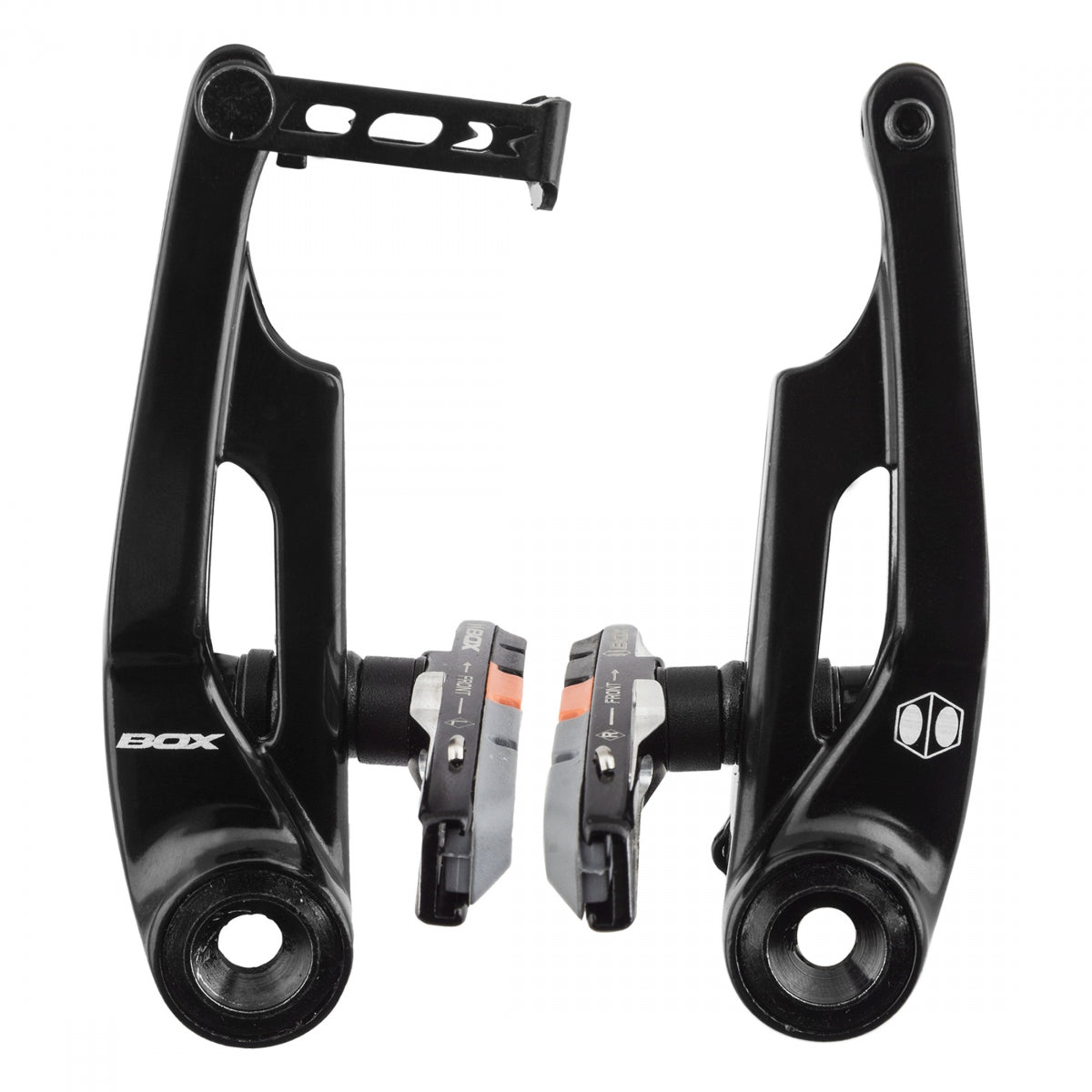

BOX COMPONENT V-BRAKE BOX ONE

For Box braking we’ve limited the use of our Oversized Technology to the V area since the levers need to be minimalist and largely act as a remote for the V-Brakes. To reduce lateral deflection at the V we chose to enlarge the pivot areas and arms while tightening tolerances at their interfaces. We robbed material from unloaded sections to reinforce these zones of high stress. Not only are you going to be more efficient with brake power delivery, but you’ll also feel the instant response of deceleration.

Key differences: The Box One V-Brake are the only brakes in the Box line-up to be blessed with Oversized Technology. They are also the only model to use sealed precision bearings to further reduce non-rotational movement. The 108mm long-reach brakes are excellent for BMX, mountain, city, urban and tandem bicycles using linear-pull-compatible levers. The 85-mm short reach (AKA mini-V) brakes are an excellent choice for cyclocross or drop-bar gravel bikes.

Oversized Technology™
• Precision Sealed Bearing Pivots
• Titanium And Stainless Steel Hardware
• Allen Key Tensions Bolt
• Inset 2nm Allen Key To Secure Cable On Right Arm
• Flexible Cable Noodle
• Streamlined Cable Fixing Point
• Arms Are Cold Forged
• 35 Millimeters Of Vertical Brake Pad Adjustment

Material: 6061-T6 Aluminum
Hardware: Titanium
Origin: Designed in USA / Made in Taiwan
Finish: Anodized w/Laser-Etched Graphics
Weight
• 85mm: 189g / 6.7oz
• 108mm: 198g / 7oz
85mm Arm = <1 x 1/8 tires
108 mm Arm = >1 x 1/8 tires
