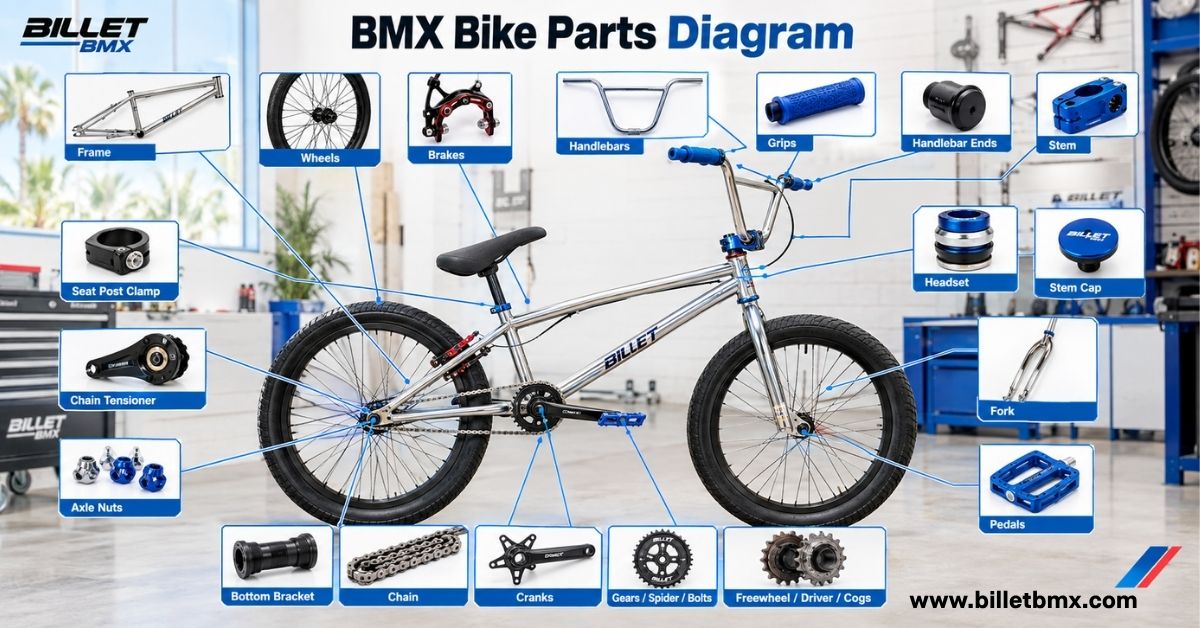

Every BMX bike looks simple at first glance: two wheels, a frame, and a set of handlebars. Spend five minutes shopping for a replacement part, and that simplicity disappears fast. Suddenly there are headset spacers, top caps, seat post clamps, and axle nuts, and it is not always obvious what connects to what. Billet BMX built this BMX bike parts diagram guide to walk through every major component in plain language, so upgrades and repairs stop feeling like guesswork.
Why a Parts Diagram Actually Helps
Most riders learn their bike part by part, usually after something breaks. That works eventually, but it means gaps in understanding stick around longer than they should. A full BMX parts diagram approach fixes that by laying out every component at once, showing how each piece connects to the next. Once a rider sees the whole bike broken down this way, buying the right replacement part or planning an upgrade becomes far more straightforward.
The Frame and Fork
The frame is the foundation everything else bolts onto, typically built from chromoly steel for its balance of strength and weight. The fork attaches to the front of the frame through the headset and holds the front wheel in place. Together, these two parts determine a bike's overall geometry, including standover height and how sharply it turns.
The Headset System
The headset sits where the fork meets the frame, allowing the handlebars to turn smoothly. This system includes several smaller parts that often confuse first-time buyers:
-
Headset cups press into the frame's head tube and hold the bearings in place
-
Headset spacers stack above the headset to fine-tune stem height and steering feel
-
Top cap sits at the very top, preloading the headset bearings so steering does not feel loose or wobbly
-
Compression plug (used with a scooter-style or threadless fork) works with the top cap to keep everything tight
Riders searching specifically for BMX parts diagram content are usually trying to figure out exactly this section, since headset components have the most confusing overlap of similar-looking parts.
Stem and Handlebars
The stem clamps onto the fork's steerer tube and holds the handlebars in place. Two common styles exist: top-load stems, where the handlebars sit on top of the stem, and front load stems, where the bars clamp into the front. Handlebars themselves vary in rise, width, and sweep, all of which affect riding position and comfort.
Grips, Levers, and Pegs
Grips slide onto each end of the handlebars, giving riders control and comfort. Brake levers, when present, mount just inboard of the grips and connect via cable to the brake itself. Pegs, when installed, thread or slip onto the front or rear axle, giving riders a platform for grinding and balance tricks.
Seat, Seat Post, and Seat Post Clamp
The seat post slides into the frame's seat tube, with the seat post clamp holding it at the correct height. The seat itself attaches to the top of the post through a seat mount system, sometimes called seat mount guts, which allows for slight angle adjustment. This entire section is one of the more overlooked parts of the bike, right up until a loose clamp causes the seat to slip mid-ride.
Drivetrain: Cranks, Chain, and Sprocket
The cranks connect to the bottom bracket inside the frame and hold the pedals. A sprocket attaches to the crank on the drive side, and the chain runs from that sprocket back to the rear wheel's cog or freewheel. A chain tensioner, when used, keeps chain tension consistent, especially important on single-speed setups where the rear axle position can shift slightly during hard riding.
Wheels and BMX Wheel Parts
This is where BMX wheel parts get more detailed than most riders expect. Each wheel includes a hub at the center, spokes connecting the hub to the rim, and the rim itself, which holds the tire. The rear hub typically includes either a cassette or freecoaster mechanism, which determines how pedaling and coasting feel. Axle nuts secure each wheel to the frame or fork dropouts, and this small piece of hardware takes more stress than its size suggests, especially during hard landings.
Brakes (When Equipped)
Many modern freestyle BMX bikes run brakeless, but plenty of riders still use a rear brake, particularly for street and flatland riding. A typical setup includes the brake lever, cable, caliper or U-brake, and brake pads that contact the rim.
| Section | Key Components |
|---|---|
| Frame and Fork | Frame, fork, headtube |
| Headset System | Cups, spacers, top cap, compression plug |
| Cockpit | Stem, handlebars, grips, brake lever |
| Seating | Seat post, seat post clamp, seat mount |
| Drivetrain | Cranks, sprocket, chain, chain tensioner |
| Wheels | Hub, spokes, rim, tire, axle nuts |
| Brakes | Lever, cable, caliper or U-brake, pads |
Seeing the bike broken into these sections makes it much easier to figure out exactly which part needs attention, whether that means a full upgrade or a simple hardware replacement.
Bringing It All Together
A BMX bike looks straightforward until it needs a repair or upgrade, and that is exactly when a clear BMX bike parts diagram earns its value. Understanding how each section connects, from the headset system down to the axle nuts holding each wheel in place, turns a confusing parts list into something riders can actually work with confidently.
