Anyone who's searched for a BMX parts diagram has usually hit the same wall - labeled images that show where things are, but not what they do, why they matter, or what to look for when something needs replacing. A diagram tells someone the headset sits between the fork and the frame. It doesn't explain why a worn headset makes steering feel loose, or what to check before buying a replacement.

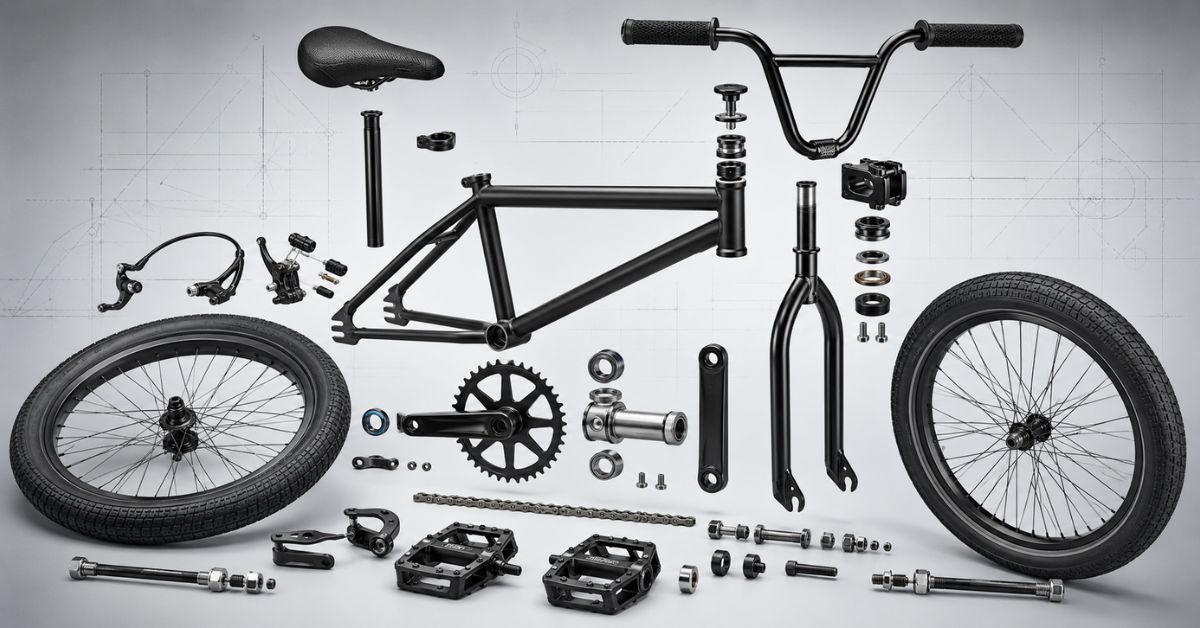

This guide works like a diagram with context. It walks through every major category of BMX bike parts - frame, fork, drivetrain, wheels, cockpit, and brakes - explaining what each part does, how it affects ride feel, and what separates a good component from one that fails too soon. Along the way, it covers where custom BMX parts fit into a build and what to look for when shopping BMX parts online. Billet BMX stocks every category covered here, with the spec detail that turns a diagram into an actual buying decision.
The Frame and Fork: The Diagram's Starting Point
Every BMX parts diagram starts with the frame, and for good reason - it's the part everything else attaches to, and it determines the geometry of the entire bike.
The main frame tubes - top tube, seat tube, down tube, and chainstays - define how long, tall, and responsive the bike feels. Top tube length is the spec most riders pay attention to, typically running 20.5 to 21.25 inches on adult BMX bikes. The head tube, at the front of the frame, holds the headset and fork in place and determines steering angle.
The fork connects the front wheel to the frame through the head tube. Full chromoly forks are the standard for serious riding - they flex slightly under impact and return to shape, which protects both the fork and the rider's wrists on hard landings. The dropouts at the bottom of the fork hold the front axle, and the steerer tube at the top passes through the headset and connects to the stem.
For riders building custom BMX parts setups from a bare frame, the frame and fork combination is the foundation everything else is chosen around - geometry, weight, and material all cascade from this starting point.
Drivetrain: Cranks Bottom Bracket Chain and Sprocket
The drivetrain section of any BMX bike parts diagram covers the components that turn pedaling into forward motion - and it's one of the areas where quality differences show up fastest.
Three-piece chromoly cranks are the standard for serious builds, with crank arms running 165mm to 175mm depending on frame size and rider preference. The cranks connect to the bottom bracket, which sits inside the frame's bottom bracket shell and holds the spindle with sealed bearings. Mid bottom brackets using 19mm spindles are the most common modern standard.
The sprocket attaches to the crank via a spider, and tooth count affects gear ratio - larger sprockets favor top speed, smaller sprockets favor acceleration and ground clearance for grinding. The chain runs from the sprocket to the rear cog on the hub, and BMX bikes use a 1/8-inch chain as standard for single-speed drivetrains.
Chain tensioners, mounted at the rear dropout, keep chain tension consistent and prevent derailing. This is a small part that's frequently upgraded - and one of the most popular custom BMX parts because of how directly it affects drivetrain reliability.
Wheels Hubs and Tires: Where the Diagram Meets the Ground
The wheel section of a BMX parts diagram includes the rim, hub, spokes, axle, and tire - and each piece affects how the bike rolls, lands, and holds up over time.
Double-wall rims are the standard for street and park riding, offering significantly more resistance to denting on hard landings than single-wall rims. The hub sits at the center of the wheel and houses the bearings that let the wheel spin freely. Cassette hubs are the most common and lowest-maintenance option; freecoaster hubs allow the rear wheel to spin backward without pedaling, popular for specific trick styles.
The axle passes through the hub and is held in the frame or fork dropouts by axle nuts. Axle nut size - typically 3/8 inch or 14mm - needs to match the axle exactly, since the two sizes look nearly identical but aren't interchangeable.
Tires run 2.1 to 2.4 inches on most street and park setups, with wider tires offering more cushion on rough pavement and narrower tires rolling faster on smooth surfaces. Tubes, valve stems, and rim tape complete the wheel assembly - small parts that are easy to overlook but cause big problems when neglected.
Cockpit and Brakes: The Parts Riders Touch Most
The cockpit - handlebars, stem, grips, and headset - and the brake system are the components riders interact with directly on every single ride.
Handlebars typically run 8.5 to 10 inches in height for street and park riding, with the stem connecting the bars to the fork's steerer tube. Stem reach, usually 48 to 55mm, affects how stretched out the rider feels. Grips are the cheapest, most frequently replaced part in this section - and one of the easiest custom BMX parts upgrades, since grip compound and pattern directly affect control and comfort.
The headset sits between the frame's head tube and the fork's steerer tube, allowing the front end to steer smoothly. A worn headset creates a loose, clunky feeling at the front of the bike that many riders mistake for a frame or fork problem.
Brake systems on BMX bikes vary - U-brakes, caliper brakes, and V-brakes are all common depending on riding style. The brake lever, cable, and pads work together, and many street riders run rear-brake-only or brakeless setups depending on experience level and riding preference.
Custom BMX Parts and Shopping BMX Parts Online
Once the diagram makes sense - what each part does and how it connects to the rest of the bike - the next step for most riders is personalizing the build. Custom BMX parts fall into two categories: performance upgrades and visual upgrades.
Performance custom parts include upgraded chain tensioners with precise adjustment, sealed bearing hubs with tighter tolerances, and chromoly components that replace heavier stock parts. These changes have measurable effects on how the bike rides and how long it lasts.
Visual custom parts - anodized axle nuts, colored valve stem caps, matching grip and bar end sets - don't change performance but make a build feel personal and intentional. Both categories matter, and a well-built bike usually includes both.
When it comes to shopping BMX parts online, the biggest factor in a good experience is spec transparency. A listing that clearly states axle diameter, bottom bracket standard, tire bead diameter, and clamp sizes lets riders confirm compatibility before ordering - avoiding the frustration of parts that don't fit. Billet BMX lists this information across its entire catalog, covering everything from frames and forks to the smallest hardware, with a shop-by-bike feature that filters parts for specific models like the SE Big Ripper, Throne Goon, and GT Performer.
Closing
A BMX parts diagram is a useful starting point, but understanding what each part actually does - and how it affects the ride - is what turns a diagram into real knowledge. From the frame and fork down to chainring bolts and pedal pins, every component plays a role in how a bike feels, performs, and holds up over time.
Whether building a complete setup from a bare frame, sourcing custom BMX parts for a personalized build, or simply replacing worn components, Billet BMX carries every category covered in this guide. The spec detail makes shopping BMX parts online straightforward, and the range covers everything from entry-level replacements to premium upgrades for riders who know exactly what they're looking for.
Frequently Asked Questions
Q1: What are the main parts of a BMX bike according to a typical parts diagram?
A standard BMX parts diagram covers the frame, fork, headset, stem, handlebars, cranks, bottom bracket, sprocket, chain, wheels, hubs, tires, pedals, and brakes. Each part connects to form the complete bike, with the frame and fork serving as the foundation for the entire build.
Q2: What is the difference between custom BMX parts and stock parts?
Stock parts come standard on a complete bike and are built to a general spec. Custom BMX parts are upgrades chosen for performance, durability, or appearance - like chromoly cranks, sealed bearing hubs, or anodized hardware - tailored to a rider's specific style and preferences.
Q3: How do I know if BMX parts will fit my bike before buying online?
Check key specs before ordering: axle diameter (3/8 inch or 14mm), bottom bracket standard (mid or Euro), handlebar clamp diameter (22.2mm standard), and tire bead diameter. Reliable retailers list these specs clearly, and Billet BMX includes a shop-by-bike filter for exact compatibility.
Q4: What BMX bike parts wear out the fastest and need frequent replacement?
Grips, chains, tires, and pedal pins wear out fastest under regular riding. Brake pads and bearings need periodic replacement depending on riding frequency. Structural parts like frames, forks, and cranks last much longer with proper maintenance and occasional bolt checks.
